Description

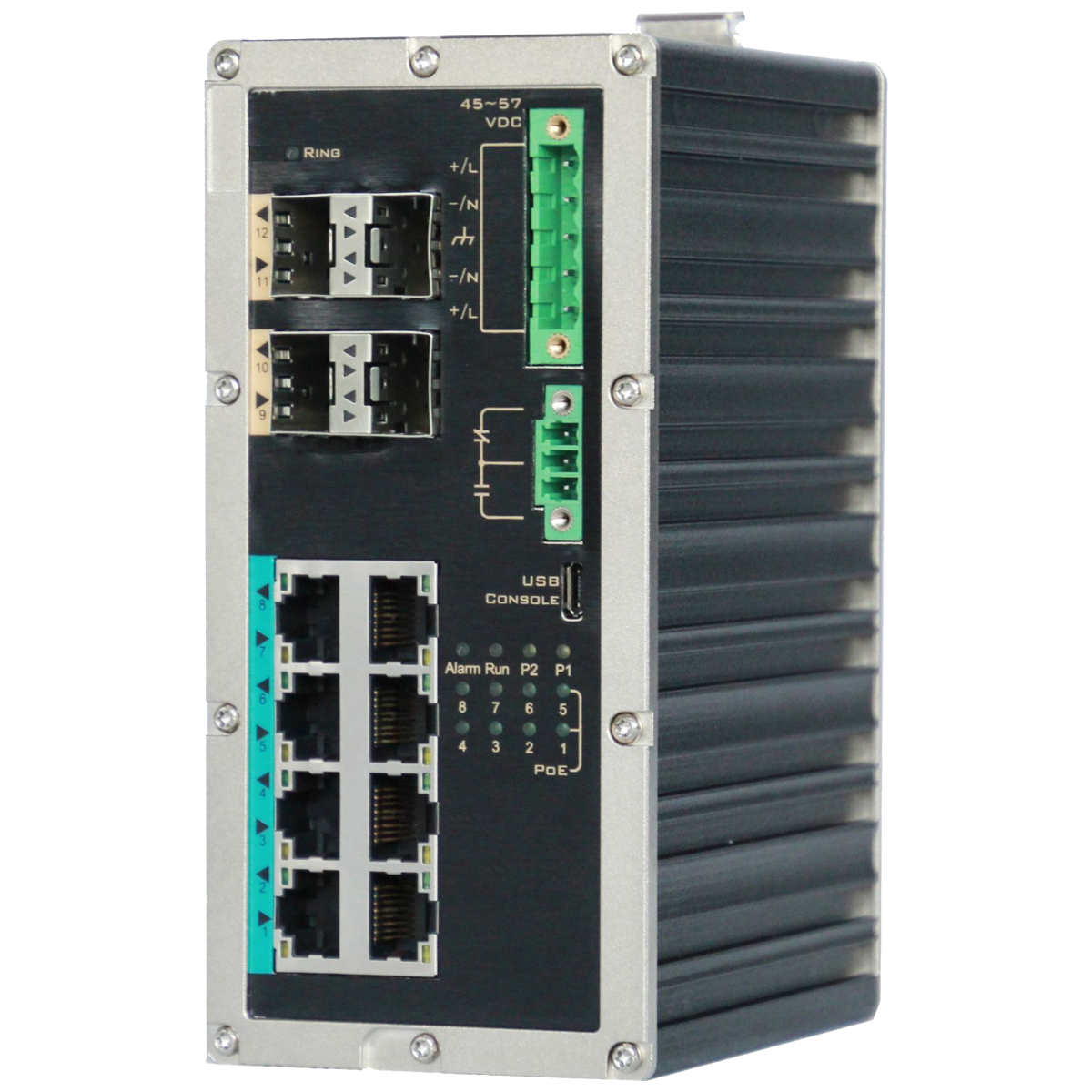

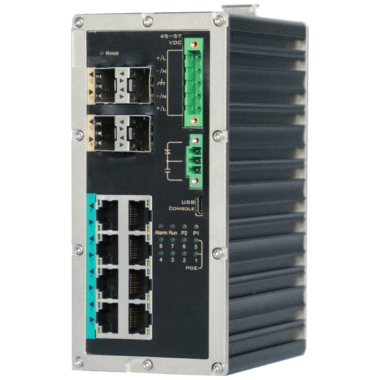

The KBC ESMGS8-P4-B series is a high performance 12 port, industrial, managed gigabit switch with eight 10/100/1000M PoE ports and four gigabit SFP ports. The eight PoE ports support IEEE802.3af/at standard. The switch supports Ethernet Ring Protection Switching (ERPS) as well as STP/RSTP/MSTP. It also supports Web-based network management, VLAN, QoS, SNMP, IGMP snooping and other network functions. LED indicators provide the connection status when using SFP option. Rugged design with IP40 enclosure and industrial level 3 protection makes it suitable for a lot of application such as Intelligent Transportation System, IP surveillance applications and industrial networks. The product is available for DIN or wall-mount configurations.
Features:
- 8* 10/100/1000Base-T Ethernet ports (PoE)
- 4* 1000BASE-X SFP ports
- EPRS (typical recovery time < 30ms over 250 units of connection)
- Different redundancy protocols and standards STP / RSTP / MSTP
- SNMPv1/v2c/v3 & RMON & Port base/802.1Q VLAN network management
- WEB, Telnet, SSH, Console (CLI)
- Open and close port, binding MAC and port
- 802.1x network access control
- 802.1Q protocol, Isolate network flow
- Radius Centralized password management
- IGMP Snooping multicast function
- IEEE802.3af/at standard.
- Overload current protection and reverse polarity protection
- LED displays connection status when using SFP
- IP40 enclosure protection
- Unique DIN mount design makes mount and removal easy
