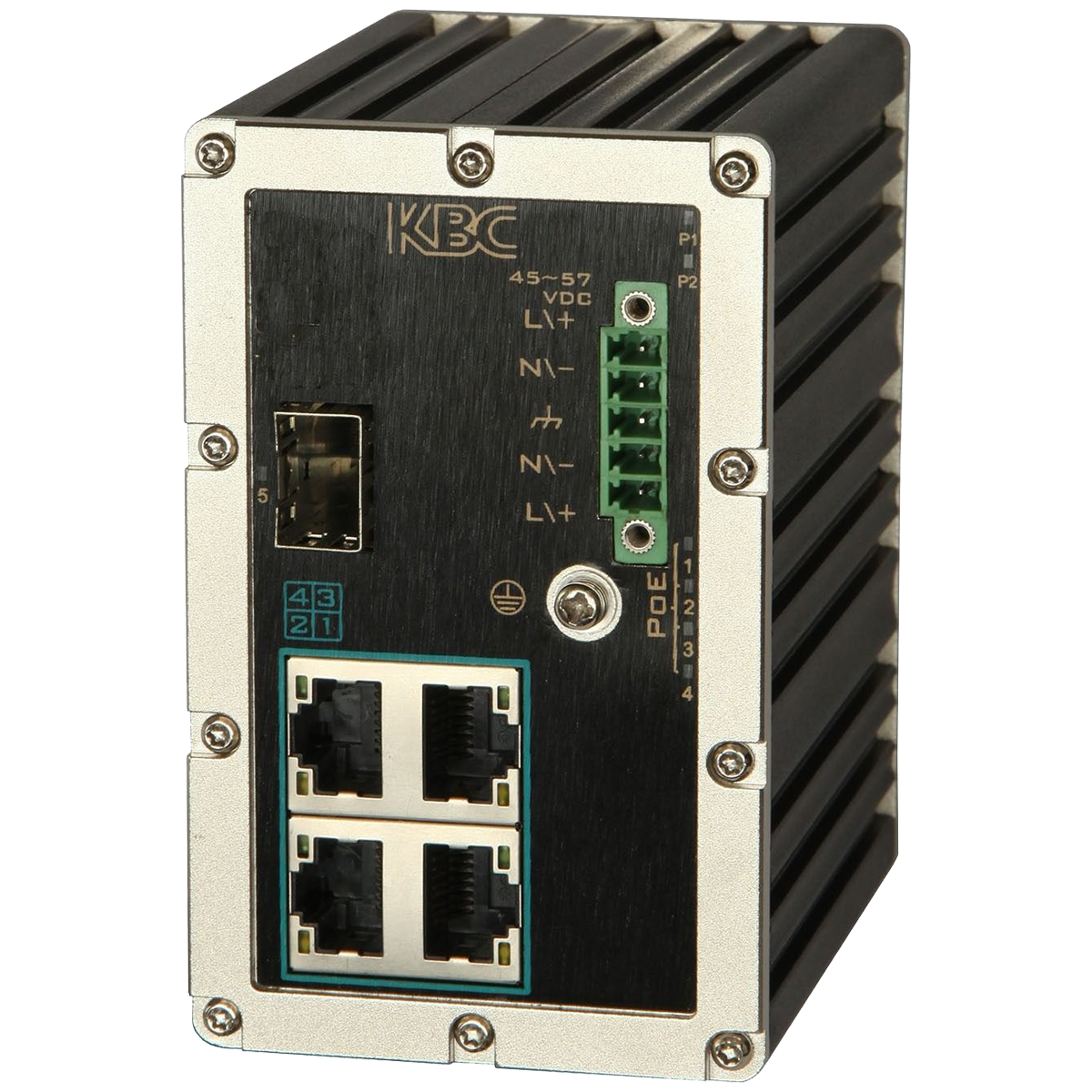

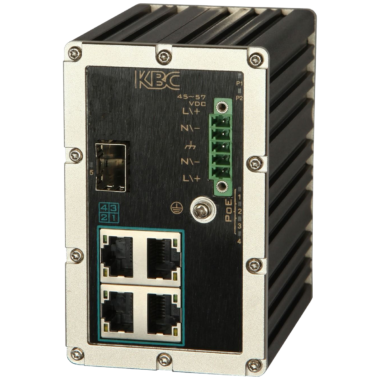

Industrial Ethernet switch, ESUGS4-P1-B

Industrial Ethernet switch, unmanaged, (4) 10/100/1000Mbps IEEE802.3af/at PoE/PoE+ copper ports, (1) Gigabit SFP port, IP40 industrial level 3 ESD protection. DIN rail mount. Input 48-57VDC. Requires power supply sold separately.

Description

The KBC ESUGS4-P1-B is a high performance unmanaged industrial gigabit Ethernet switch with 4* 10/100/1000M auto-sensing copper ports, and1* gigabit SFP port. Four copper ports support PoE/PoE+ where each port offers a maximum of 30w power. Rugged design with an IP40 enclosure and industrial level 3 ESD protection. Unique DIN mount design makes mounting and removal simple. The rugged design is suitable for use in harsh environment applications such as in Power, Transportation, Pipeline, Petrochemical and Automation Industries and IP surveillance.

Features:

  • 4×10/100/1000Base-T(X) ports
  • 1x gigabit SFP port
  • Supports IEEE802.3af&at
  • Redundant power supply input
  • Overload current protection and reverse polarity protection
  • Level 3 ESD protection
  • IP-40 housing design
  • Unique DIN mount design makes mounting and removal simple
  • Both POE and Non-PoE models are available
