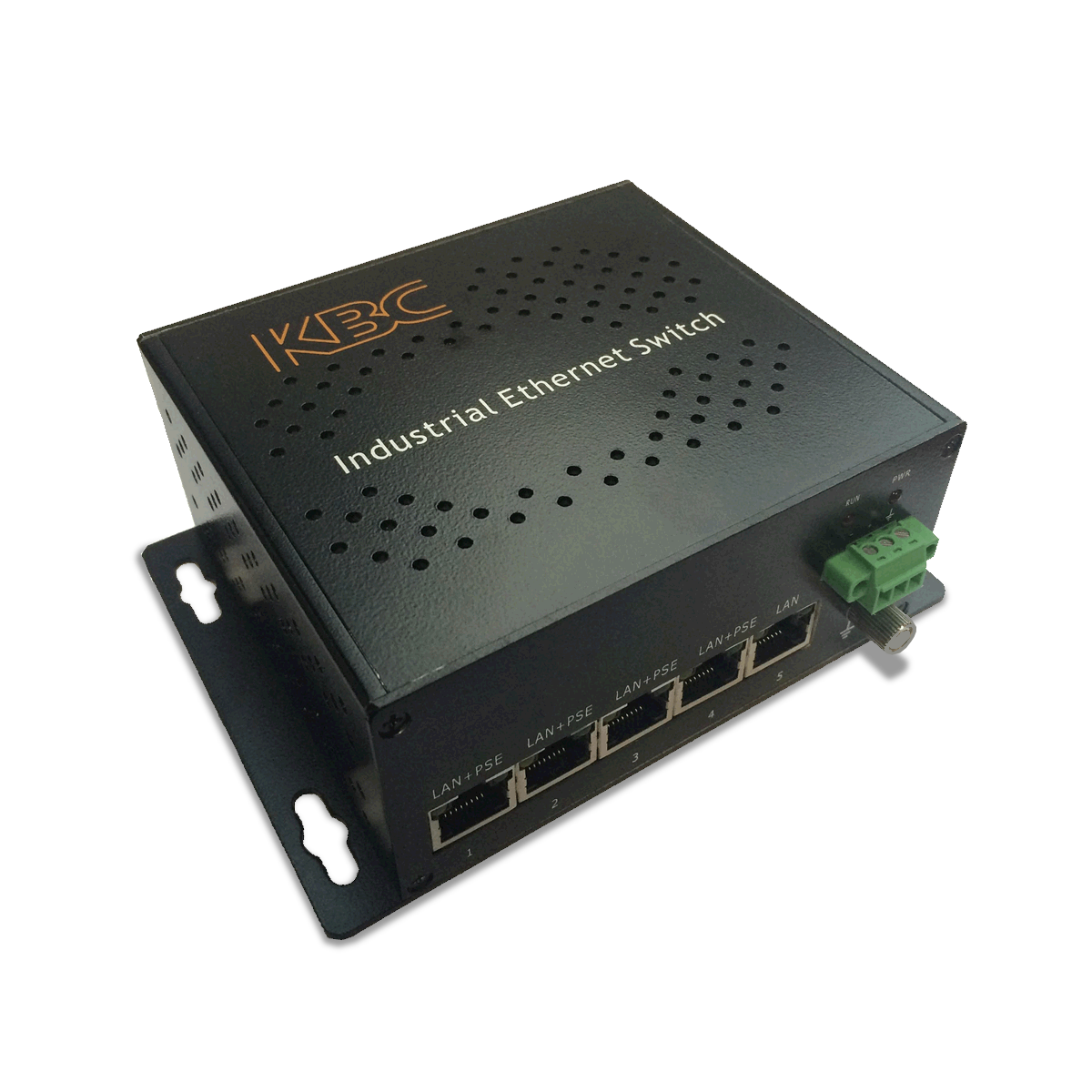

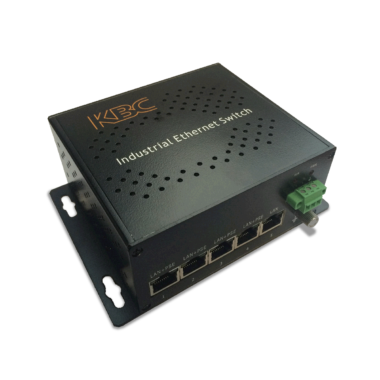

Industrial Ethernet switch, ESULH4-L1-W

Industrial Ethernet switch, unmanaged, (4) 10/100Mbps IEEE802.3af/at PoE/PoE++ copper ports (up to 70W per port) and (1) 10/100Mbps copper port.

Description

The KBC ESULH4-L1 series is a 5-port, unmanaged industrial switch with 4 of the ports supplying IEEE802.3at POE++, Power over Ethernet. The switch is a Power Sourcing Equipment (PSE) device and is capable of providing up to 70W of power per port. The switch provides connectivity for up to five 10/100Mbps twisted pair copper ports. The ESULH4-L1 series is designed for use in a wide range of operating temperatures in non–environmentally conditioned, industrial applications. It is an automatic identification effective powered device (PD) to maintain a reliable power supply and includes short circuit and overload protection. A DIP switch per PoE port is provided to select PSE or direct power for non PoE PD. The ESULH4-L1 is available in a wall-mount configuration.

Features:

  • 3at POE++ on 4 ports
  • DIP switch to select PSE or direct power for non PoE PD
  • Supports 48Vdc input
  • Full & half duplex operation
  • MDI/MDI-X
